DEL UNIVERSAL CHIROPRACTIC

Designed for Chiropractic Care

The Universal Chiropractic System effectively combines flexibility, efficiency and affordability. The system will instantly improve patient workflow by eliminating the use of cassettes and developing conventional x-ray film. Instead, Universal Chiropractic Systems are powered by the intuitive Vieworks DR system giving technologists access to high resolution digital imaging and processing capabilities.

Expansive Movement

Featuring a floor-to-wall, floor-to-ceiling tube stand and a compact wall stand, the system delivers extensive vertical travel allowing for a full range of upright positions. The tube stand features electromagnetic brakes and a fixed positioned tube arm for easy and accurate positioning to the wall stand.

Compact Wall Stand

The ultra-compact VS100 upright is powered by an electric lock release handle and dual counterweight cables for added patient and user safety. Its expansive vertical travel of 58.4 in (148.3 cm) enables a complete range of exams from skull to weight-bearing knee and ankle exams.’

> VS100 and Accessories

Vieworks (See Every Detail)

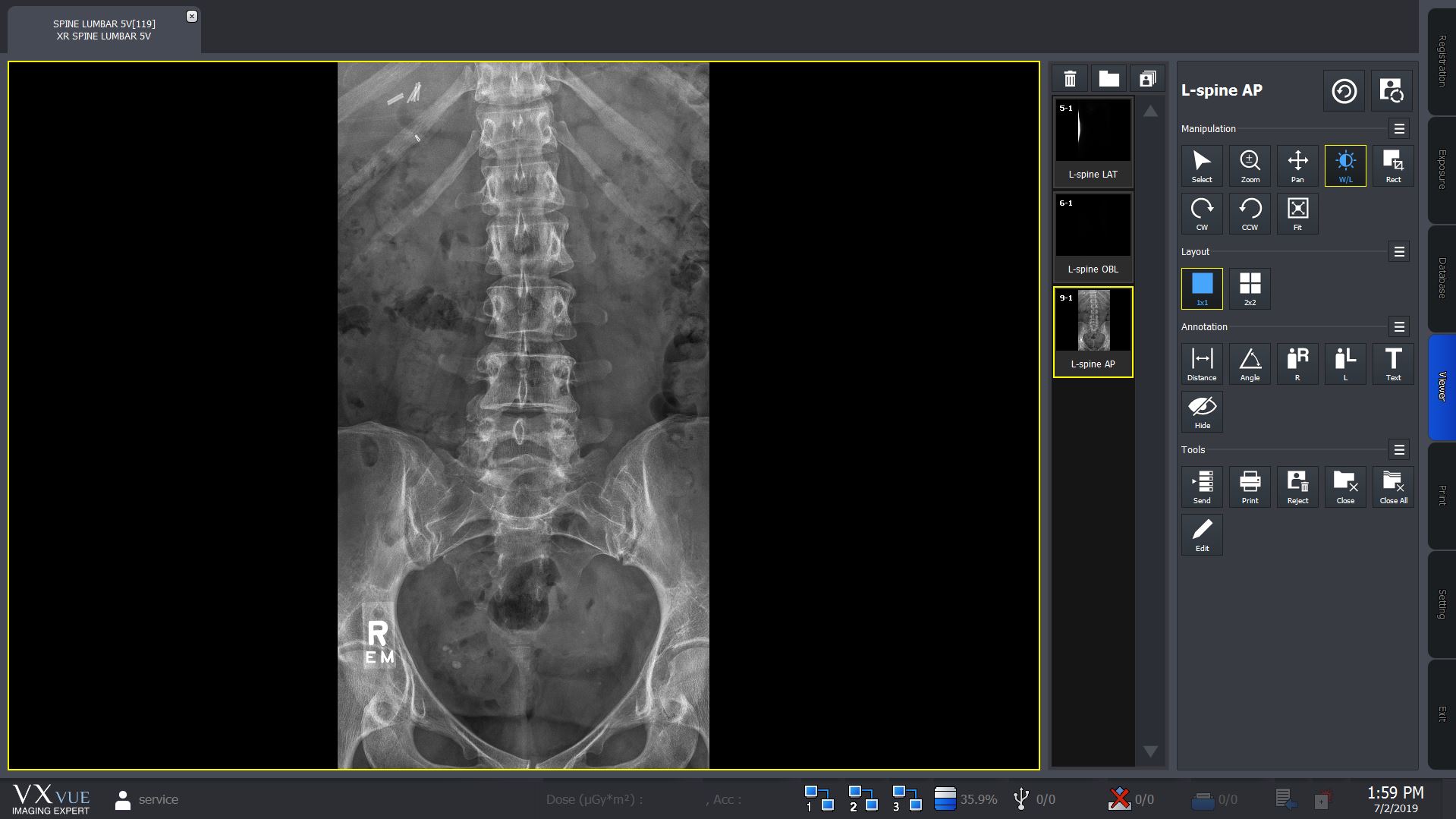

Upgrade your Universal Chiropractic system with our most affordable digital system option — Vieworks DR. Vieworks VXView image acquisition software produces exceptional clarity and resolution, perfect for chiropractic spine studies. Images can be sent to PACS, which possesses powerful tools capable of a variety of chiropractic specific image enhancements.

TECHNICAL SPECIFICATIONS

CEILING HEIGHT Minimum 96 in (244 cm)
Maximum 116 in (295 cm)
VERTICAL TRAVEL Minimum 12 in (26.5 cm)
Maximum 73 in (189 cm)
LONGITUDINAL TRAVEL 96 in (244 cm) with 8 ft rail
RAIL LONGITUDINAL LENGTH 8 ft standard (6/12 ft optional)
TRANSVERSE TRAVEL 9 in (23 cm)
COLUMN ROTATION ±180° with detents 0°, 90°, 90°
TUBE ROTATION +180°, -180°
